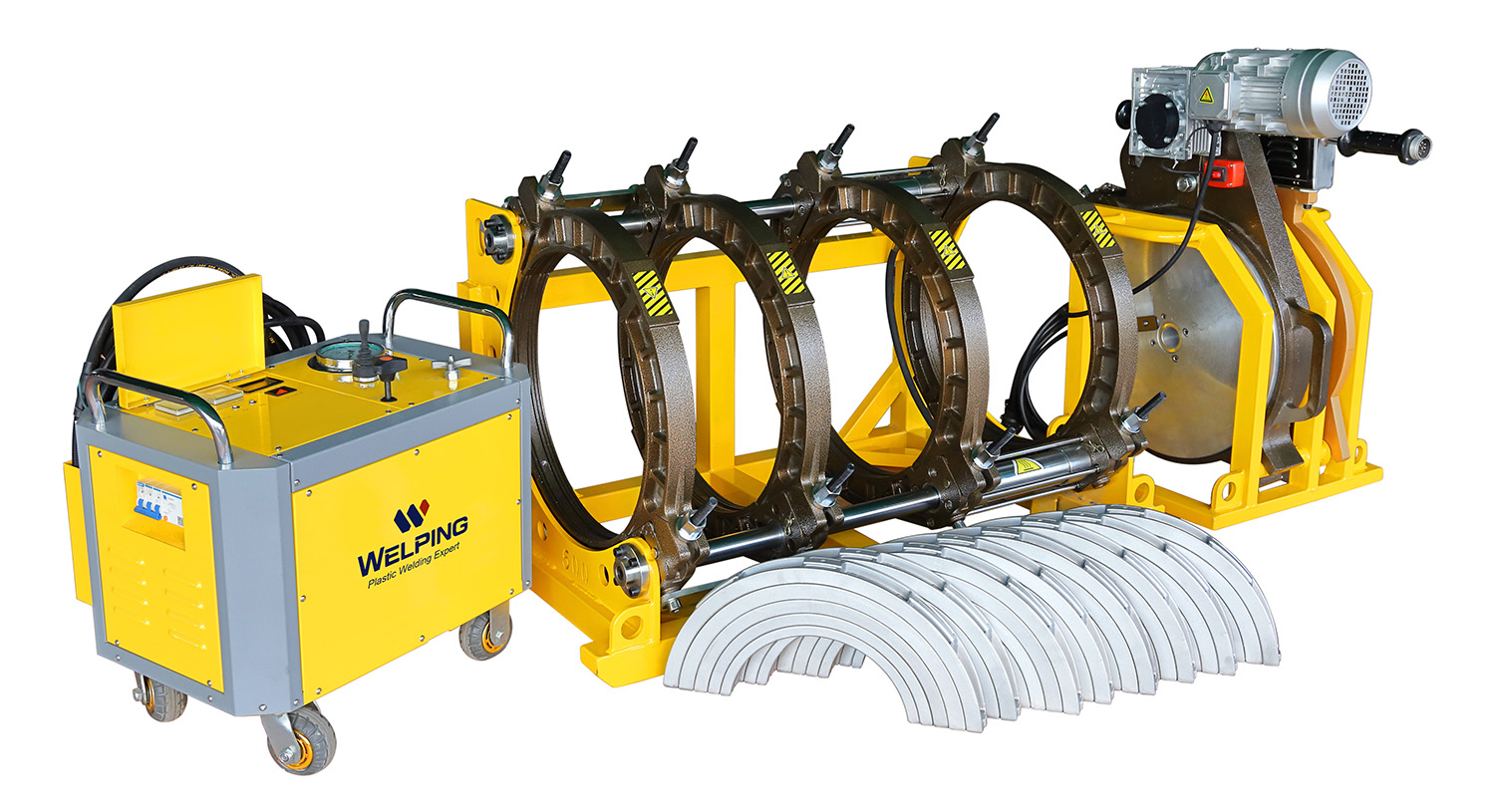

250mm-500mm HDPE pipe jointing machine, with hydraulic actuation system.
1. Robust structure, withstanding heavy-duty field jobs.
2. Built-in hydraulic cylinder with qualified quick connecting joints
3. Aluminum die casting type reducers
1. Gear transmission, more steady and higher efficient than chain type
2. Standard HSS blade, with double edges
1. Durable copper wiring motor, PTFE coating from Dupont or Daikin
2. Aviation plug, safe and reliable
1. Full enclosure structure, shielding splash, and dirt
2. Color LCD screen, clear display and easy operation interface
Product Characteristics

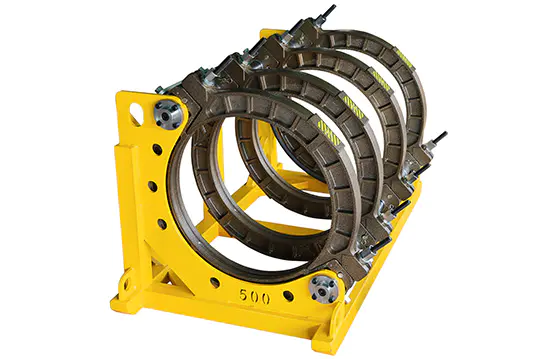

1. Robust structure of carriage part with streamline outlook
2. Durable copper wiring motor, HSS blade, PTFE coating from Dupont or Daikin
3. Hydraulic station of integrated enclosure shielding splash and dirt
4. Data logging device optional
Detailed datasheet
| Model | WP500A |
| Welding range (mm) | 250-500 |
| Standard reducers (mm) | 250-280-315-355-400-450-500 |
| Power supply | 380V/50Hz, 3PH |
| Total power | 9.1 KW |
| Heating plate | 6.5 KW |
| Planing tool | 1.1 KW |
| Hydraulic station | 1.5 KW |
| Pressure adjusting range | 0-16 MPa |
| Max Temperature of heating plate | 270ºC |
| Temperature Deviation | ±7ºC |
| Piston area | 22.38CM² |
